XCMG Excavator Undercarriage Parts: Track Rollers, Idlers, Sprockets & Chains
XCMGSparts.com offers high-quality excavator undercarriage parts designed for XCMG machines and compatible brands. Our range includes durable track rollers, precision idlers, heat-treated sprockets, and heavy-duty track chains that ensure reliable performance, extended service life, and minimal downtime on construction sites. Whether you need replacement parts for maintenance or spare components for a fleet, we provide competitive pricing, worldwide delivery, and expert technical support to keep your excavators running smoothly.
- 100% Genuine XCMG Quality
- Forged from High-Strength Alloy Steel
- Shipped Worldwide with Ease
Track Assembly: Track Link, Master Track, Track Shoe, Track Bolt & Track Nut
Track Link & Master Track
The track link and master track form the core structure of the excavator’s undercarriage, designed to connect all track components securely and withstand constant heavy-duty operation.
Track Shoe
Made from high-strength steel, the track shoe provides stability and optimal ground grip, ensuring safe machine operation even in tough working environments.
Track Bolt & Track Nut
Precision-engineered bolts and nuts fasten the track shoes to the links, maintaining a tight and secure assembly that reduces wear and prevents unexpected failures.
Complete Track Assembly
Together, these components create a durable track system that supports smooth movement, reduces downtime, and extends the overall service life of your XCMG excavator.
XCMG 414104678 Track Link For XE370CA

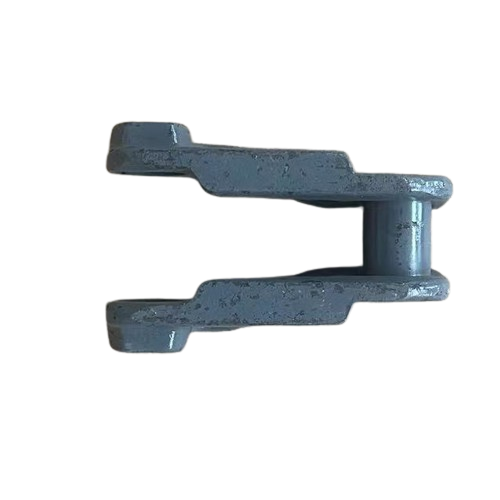

XCMG 414100994 Track Link For XE140C

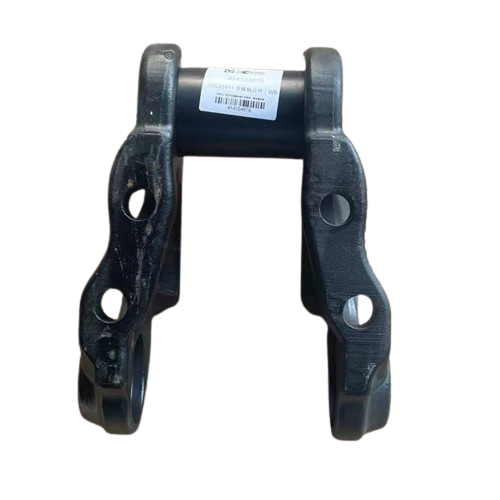

XCMG 414104679 Master Track For XE370CA

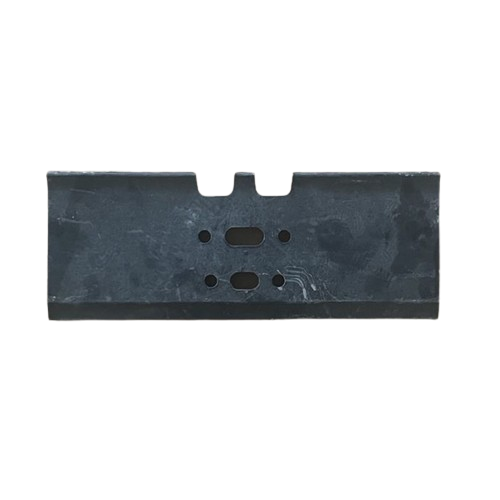

XCMG 414100990 Track Shoe For XE140C

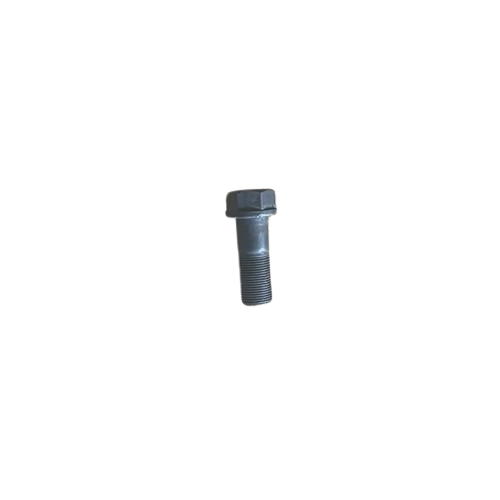

XCMG 414100050 Track Bolt For XE215C

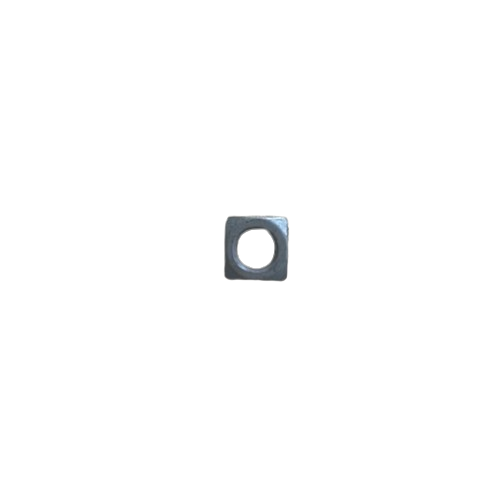

XCMG 414100051 Track Nut For XE215C
Roaders: Carrier Wheel, Track Roller & Bottom Roller
Carrier Wheel
The carrier wheel, also called the top roller, supports the upper section of the track chain and keeps the track aligned during movement. It helps distribute weight evenly and reduces stress on the undercarriage system.
Track Roller
Track rollers are installed at the bottom of the undercarriage to bear the full weight of the excavator and guide the track chain smoothly along the ground. They are manufactured with wear-resistant steel to ensure durability under heavy loads.
Bottom Roller
Bottom rollers work in pairs with track rollers to stabilize the track assembly and absorb impact from uneven terrain. Their robust design minimizes vibration and improves machine stability during operation.
Complete Roader Set
Together, the carrier wheel, track rollers, and bottom rollers provide reliable track guidance, reduced wear, and extended undercarriage service life for XCMG excavators.
XCMG 800366361 Carrier Wheel For XE210

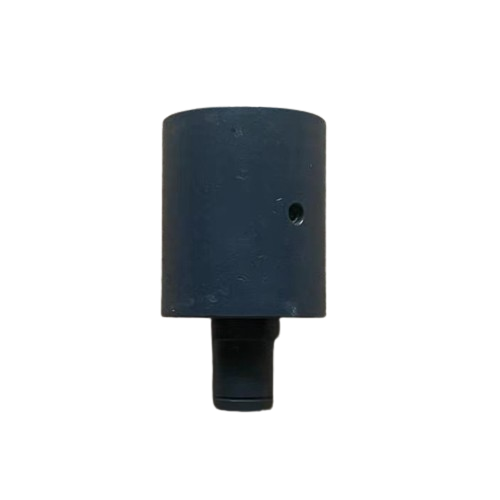

XCMG 414103005 Carrier Wheel For XE35U

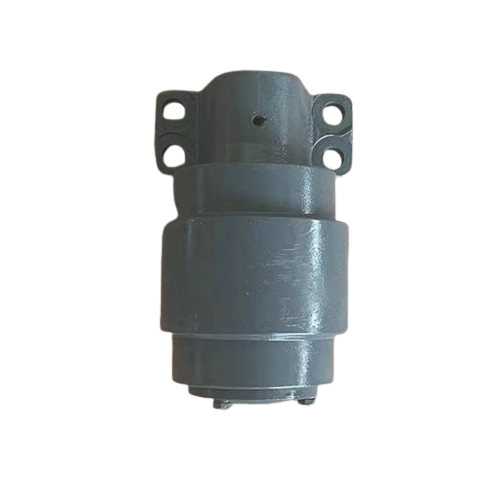

XCMG 414102909 Carrier Wheel For XE215C
Guide Wheels: Idlers, Track Idlers & Tensioning Wheel
Idlers
Idlers are positioned at the front or rear of the undercarriage to guide the track chain and maintain proper alignment during operation. Their large diameter design reduces track wear and improves machine stability.
Track Idlers
Track idlers serve as a buffer between the track chain and other undercarriage components, absorbing impact and minimizing vibration. They help ensure smoother movement and longer service life for the track assembly.
Tensioning Wheel
The tensioning wheel, also known as the recoil or adjusting wheel, maintains the correct track tension. By preventing slack and excessive tightness, it protects the track assembly from premature wear and reduces downtime.
Complete Guide Wheel Assembly
Together, these components keep the excavator’s track system running smoothly, ensuring better traction, less wear, and improved reliability in demanding job site conditions.
XCMG 800309026 A4W01465 A Slot Tensioning Wheel For XE140C
Drive Wheels: Sprocket & Track Sprocket
Sprocket
The sprocket is the primary driving wheel of the excavator undercarriage. With precision-cut teeth, it meshes directly with the track links to transfer engine power into forward or reverse movement. Built from high-strength steel, the sprocket delivers durability and reliable performance under heavy loads.
Track Sprocket
The track sprocket is specifically designed to fit the excavator’s track chain system, ensuring accurate engagement with the links. Its hardened teeth resist wear and deformation, extending the service life of both the sprocket and the track chain.
Complete Drive Wheel System
Together, the sprocket and track sprocket provide the driving force of the excavator, enabling efficient operation, reduced downtime, and smooth power transmission in the most demanding working environments.
Other Chassis Parts: Pins, Pin Shafts & Kingpin Shafts
Pins
Pins are essential connectors in the excavator’s chassis and undercarriage system, securing key components while allowing controlled movement. They are engineered with high-strength materials to resist bending and wear under heavy loads.
Pin Shafts
Pin shafts provide structural support and precise alignment between moving parts. Their hardened surfaces ensure long-lasting durability, reducing the risk of deformation and premature failure.
Kingpin Shafts
Kingpin shafts serve as pivotal joints within the chassis assembly, enabling smooth articulation and reliable load distribution. Built for strength and stability, they are critical to maintaining safe and efficient machine performance.
Complete Chassis Support
Together, these components form the backbone of the excavator’s chassis, ensuring secure connections, reduced wear, and long-term reliability across demanding job conditions.
XCMG 860162653 Bucket Pin 252102677 For XE140C

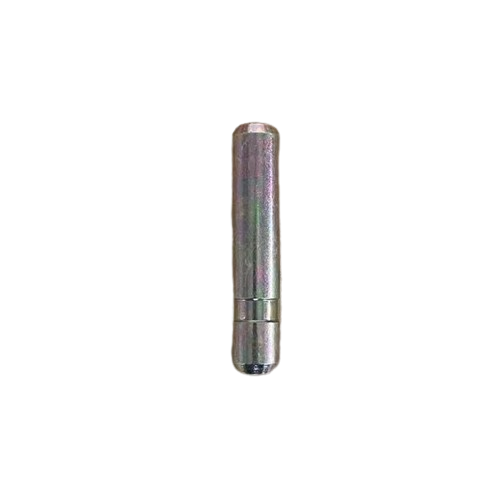

XCMG 819975618 Pin Shaft For XE210I

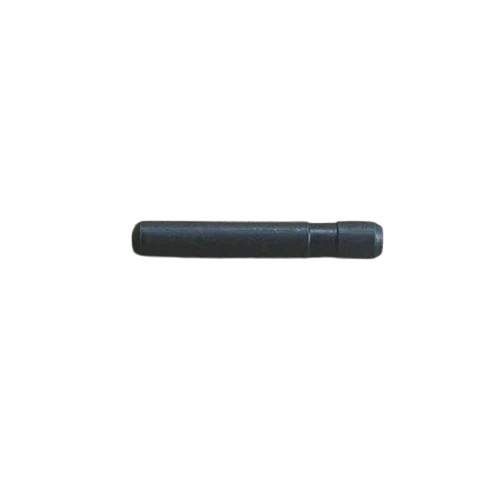

XCMG 819962856 Pin For XE140IK

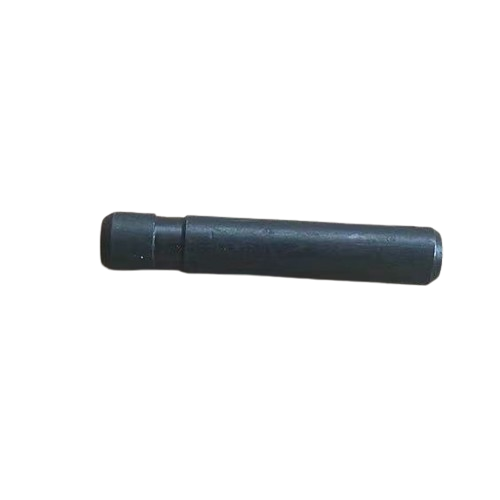

XCMG 819956515 Pin For XE380C

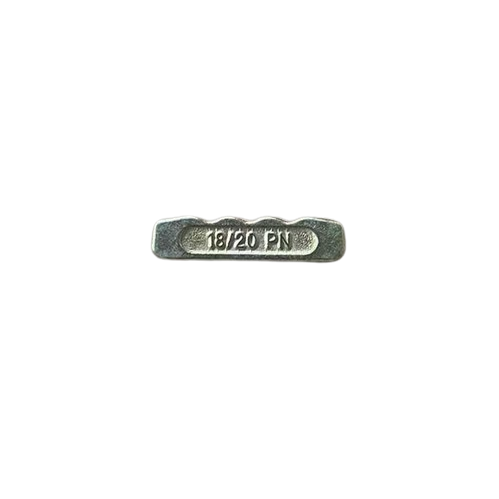

XCMG 819908822 Pin For XE35U

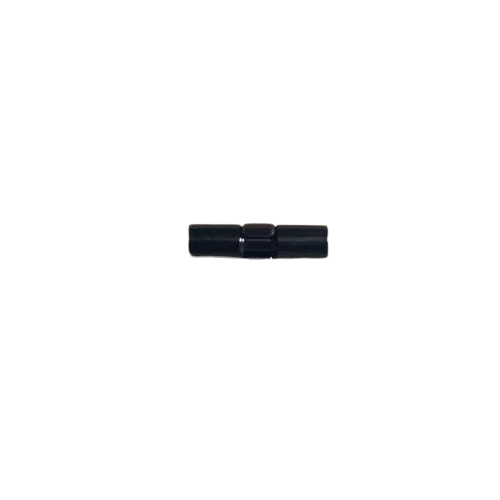

XCMG 819908742 PC200R Circlip(With Pin) For XE200I

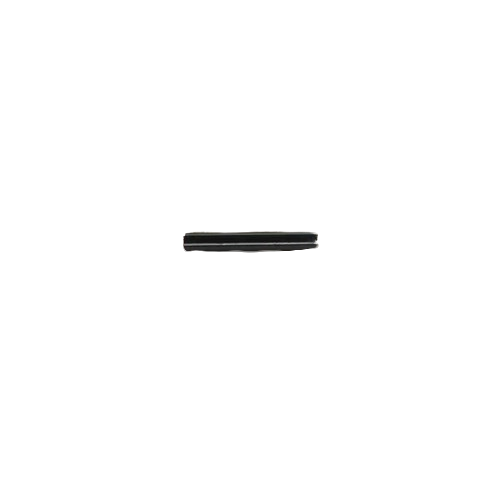

XCMG 805600065 10×70 GB_T91-2000 Pin For XE380C

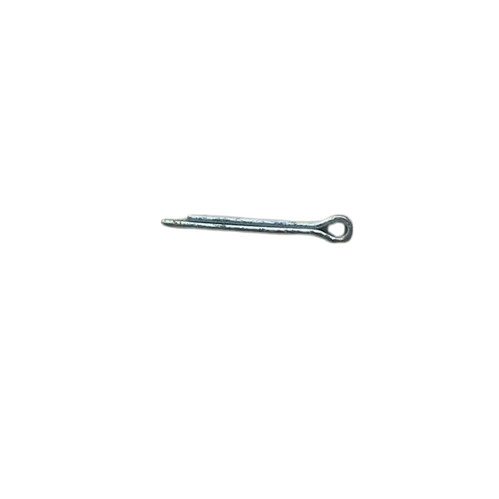

XCMG 805600063 Pin For XE35U

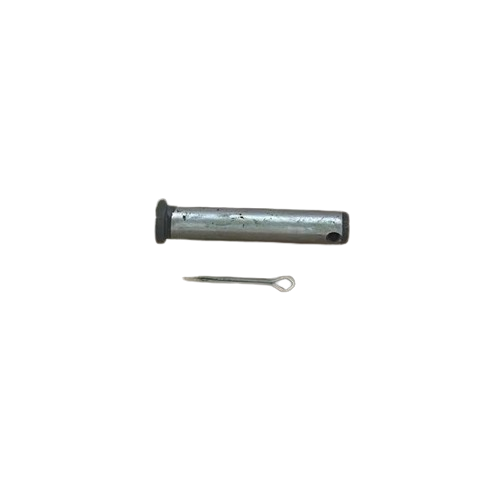

XCMG 414102987 Pin For XE35U
XCMG 414102984 Pin For XE35U

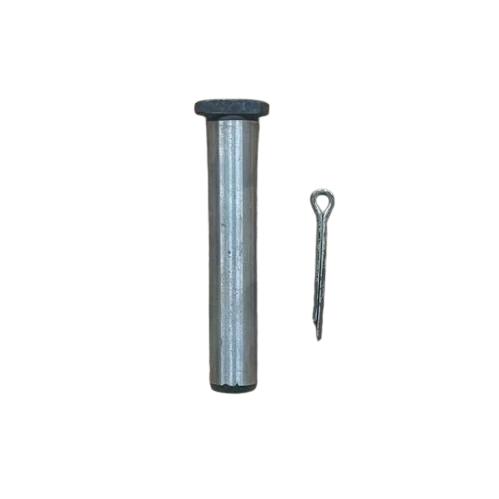

XCMG 414101414 Pin For XE80C

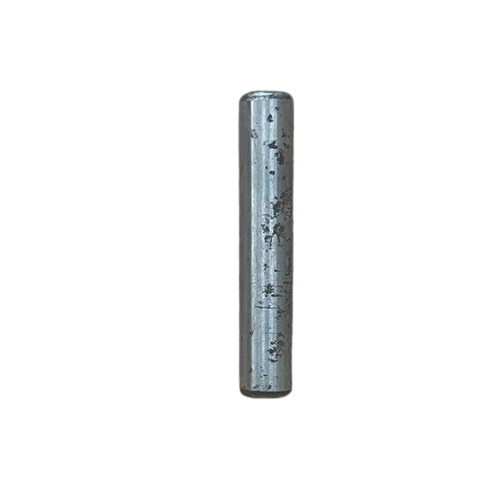

XCMG 414101409 Pin For XE80C

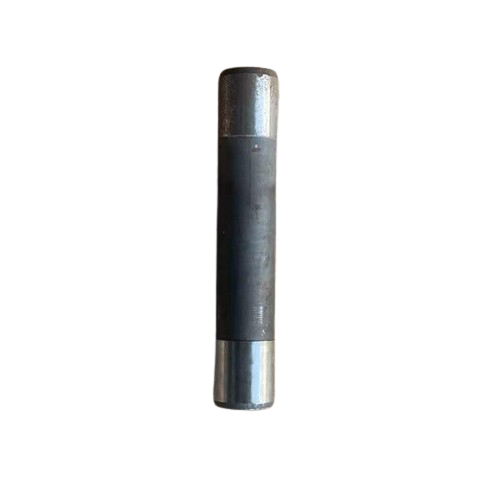

XCMG 414100506 Xdl216-04 Pin Shaft For XE380C

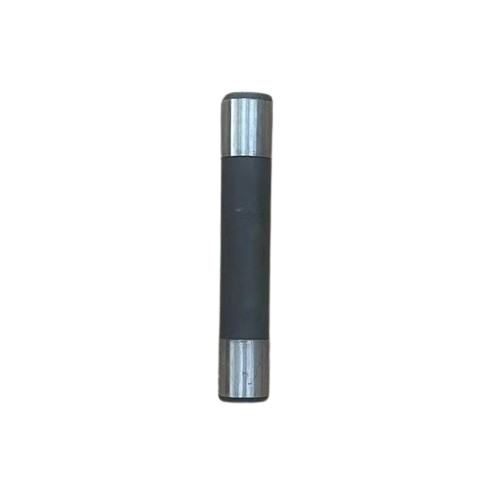

XCMG 414100463 Pin For XE210

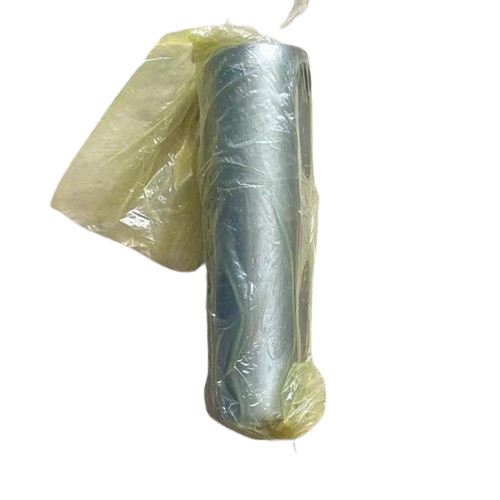

XCMG 310602110 Pin For XE215C

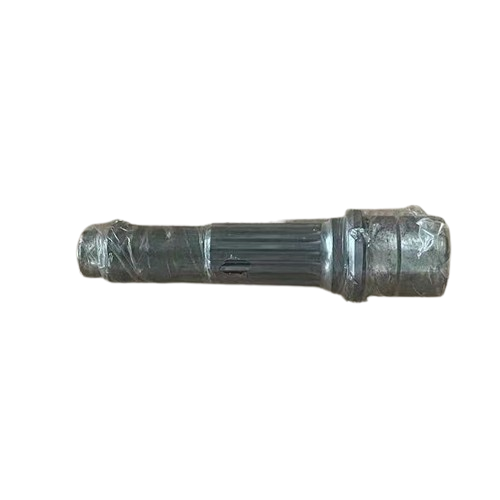

XCMG 860139881 Dirve Shaft For XE230C

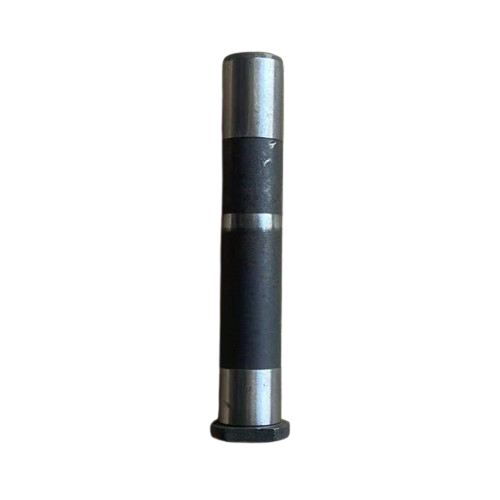

XCMG 414100511 Xdl216-09 Kingpin Shaft For XE380C

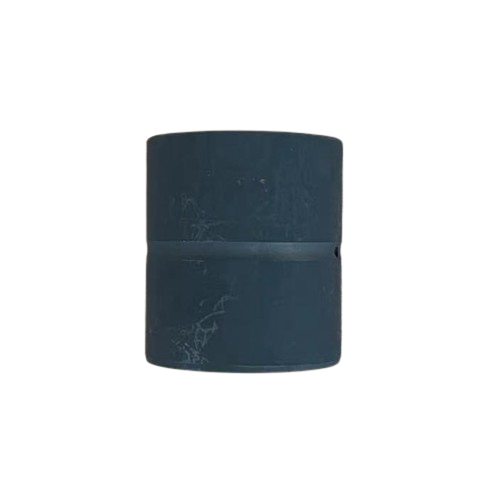

XCMG 312601456 Shaft Sleeve For XE380C
Why Choose Our XCMG Undercarriage Parts?
Keeping your excavator running smoothly starts with reliable undercarriage components. Our XCMG undercarriage parts are designed for durability, compatibility, and cost efficiency — giving you the confidence to tackle any project with less downtime.
Reliable Quality
Built with high-strength steel and strict quality control, ensuring durability in the toughest working conditions.
Extended Service Life
Wear-resistant and heat-treated materials reduce maintenance needs and keep your machine working longer.
Expert Support
Professional assistance to help you select the right part and maintain peak equipment efficiency.
Perfect Compatibility
Precisely engineered to fit XCMG excavator models for smooth installation and reliable operation.
Worldwide Delivery
Fast international shipping with dependable logistics partners to minimize downtime.
10% Lower Cost
By sourcing directly from us, customers typically save 10%-15% compared to local dealers.
Undercarriage Maintenance Guide
Signs You Need to Replace Your Undercarriage
Excessive Track Sag – If the track chain sags more than recommended, it indicates stretched or worn links.
Uneven Wear on Rollers or Idlers – Flat spots, cracks, or oil leakage show the part has reached its service limit.
Worn or Broken Sprocket Teeth – Sharp, hooked, or missing teeth reduce engagement and damage the track chain.
Reduced Machine Stability – If your excavator feels unstable or vibrates excessively, the undercarriage may be compromised.
Frequent Track Adjustment – Constantly tightening the track tension is a strong signal of wear.
How to Measure Undercarriage Wear
Track Chain Wear – Use a caliper to measure link height and compare with manufacturer specifications.
Sprocket Wear – Check the tooth profile; sharp or pointed teeth indicate excessive wear.
Roller and Idler Wear – Measure flange thickness and diameter, ensuring they meet minimum service standards.
Track Shoe Wear – Inspect the grouser height; low or uneven grousers reduce traction and need replacement.
Overall Wear Percentage – Keep track of wear records over time to predict replacement intervals and reduce downtime.
FAQs of XCMG Undercarriage Parts
Replacement intervals vary depending on working conditions. On average, major undercarriage components may last between 4,000–6,000 operating hours under normal use. Regular inspection every 500 hours helps determine the right time for replacement.
We supply both genuine XCMG parts and high-quality replacement parts. All replacement components are engineered for compatibility and durability to match XCMG standards.
Both options are available. You can order single items such as rollers or sprockets, or complete track assemblies depending on your maintenance needs.
Provide your excavator’s model number and serial number, and our team will verify the correct part specification before shipping.
Yes. We ship XCMG spare parts worldwide with reliable logistics partners, ensuring timely and safe delivery.
Warranty terms depend on the part type, typically ranging from 6 to 12 months under normal operating conditions.
Yes. We offer competitive pricing, and bulk orders can save 10% compared with standard dealer pricing.
